Aurora Series
High-efficiency wall split solutions designed for reliable everyday cooling, quiet operation, and long-term performance. Select specifications below for available models.
Key Features
Hover any item for a highlight.
✓
Elegant modern design panels
✓
Louver position memory
✓
Air swing, sleep mode
✓
High efficiency compressor
✓
Auto re-start
✓
Self diagnosis & auto protection
✓
Green fin technology
✓
Cordless remote control
✓
Refrigerant leakage detect
✓
Low noise air-flow system
✓
On/off timer
✓
Eco-friendly refrigerant R410A
✓
High EER
Units
Replace images below with indoor and outdoor unit visuals.

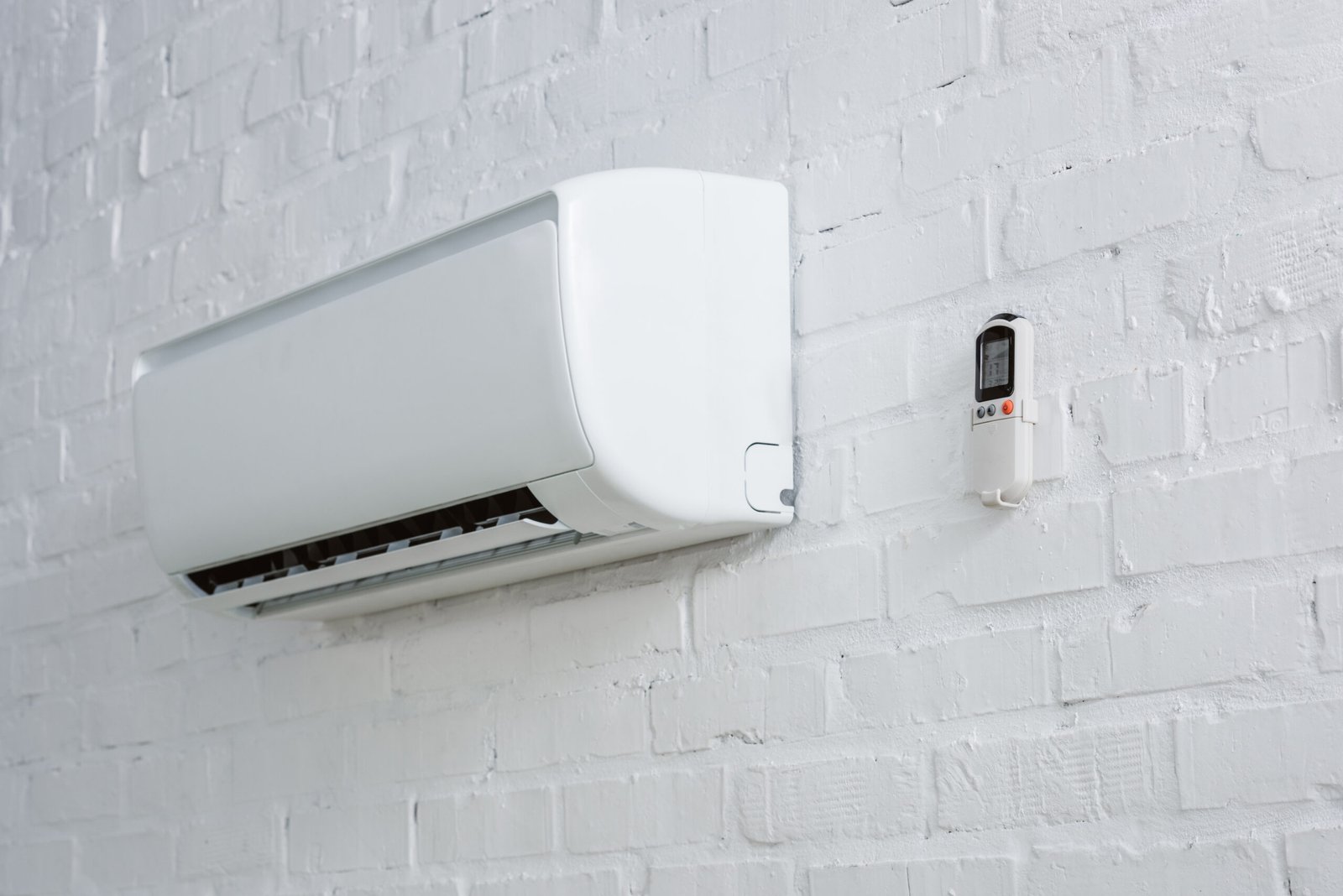

Indoor Unit
Wall Split
Outdoor Unit
Condenser
Technical Specifications
Scroll horizontally on mobile • Hover rows for quick scan
| Manufacture Model / Parameters Craft Lanka Model No |
MSABA-09CRN1 CLE/SABA-09CRN1 |
MSABB-12CRN1 CLE/SABB-12CRN1 |
MSABD-18CRN1 CLE/SABD-18CRN1 |
MSABE-24CRN1 CLE/SABE-24CRN1 |
MSABE-30HRN1 CLE/SABE-30HRN1 |
|---|---|---|---|---|---|
| Voltage (V) | 220–240 | ||||
| Phase / frequency (Hz) | 1/50 | ||||
| Application area (m²) | 13–22 | 18–29 | 26–44 | 31–51 | 35–58 |
| Cooling capacity (BTU) | 9,000 | 12,000 | 18,000 | 24,000 | 30,000 |
| Power input (W) | 800 | 1065 | 1600 | 2140 | 3140 |
| Operating current (A) | 3.6 | 4.8 | 7.2 | 9.6 | 14 |
| E.E.R. BTU/W | 11.25 | 11.26 | 11.25 | 11.2 | 9.5 |
| Moisture removal (L/h) | 1.0 | 1.2 | 1.8 | 2.2 | 2.6 |
| R410a filling (g) | 400 | 600 | 900 | 1200 | 2200 |
| Air flow volume (m²/h) | 430/360/250 | 531/378/357 | 850/650/525 | 1085/980/895 | 1089/973/893 |
| Noise level (Indoor) dB(A) (Hi/Mid/Lo) | 37/33/28 | 38/35/33 | 46/39/35 | 47/45/43 | 48/45/40.8 |
| Outer dimensions for units — Indoor | 722 × 187 × 290 | 802 × 189 × 297 | 965 × 215 × 319 | 1080 × 226 × 335 | 1080 × 226 × 335 |
| Outer dimensions for units — Outdoor | 700 × 275 × 550 | 770 × 300 × 555 | 770 × 300 × 555 | 845 × 363 × 702 | 846 × 363 × 702 |
| Packing dimensions for units W × D × H — Indoor | 790 × 270 × 370 | 875 × 285 × 375 | 1045 × 305 × 405 | 1155 × 415 × 315 | 1155 × 415 × 315 |
| Packing dimensions for units W × D × H — Outdoor | 815 × 325 × 615 | 900 × 345 × 585 | 900 × 345 × 585 | 965 × 395 × 755 | 965 × 395 × 765 |
| Piping connection (liquied-gas) Inch. | 1/4 - 3/8 | 1/4 - 1/2 | 1/4 - 1/2 | 3/8 - 5/8 | 3/8 - 5/8 |
| Net weight of units Indoor/Outdoor (kg) | 7.5 / 25.5 | 8.7 / 27.5 | 11.5 / 33.5 | 13.8 / 45.5 | 14 / 54.4 |
| Gross weight of units Indoor/Outdoor (kg) | 10 / 27.5 | 11.2 / 30 | 15 / 36 | 17.6 / 49 | 17.7 / 57.9 |
